Connect to Oracle from ArcGIS—ArcGIS Server | Documentation for ArcGIS Enterprise

To connect to Oracle from ArcGIS clients, install an Oracle client on the ArcGIS client machines, set environment variables that reference the Oracle, and connect to the database from ArcGIS.

Once the Oracle client is configured on all your ArcGIS client machines, create a database connection file in ArcGIS Pro or ArcMap.To publish ArcGIS Server web services that reference the data in your Oracle database, register the database connection file with your ArcGIS Server sites.

Connect from ArcGIS Pro

To connect from an ArcGIS Pro project to Oracle, install an Oracle client on the ArcGIS Pro computer, set the PATH environment variable to the location of the Oracle client, and create a database connection.

Install the Oracle client

To make a connection from a client machine to an Oracle database, you must install the Oracle client application on the client machine. Be sure you install a release of the Oracle client application that is compatible with the release of the database to which you want to connect.

You can obtain the Oracle Instant, Runtime, or Administrator Client from Oracle, and install it on the client computer, following the directions in your Oracle documentation.

Set the PATH variable

Set the PATH environment variable on the ArcGIS Pro machine to the location of the Oracle Client installation. See Microsoft Windows documentation if you need instructions for setting the PATH environment variable.

Note:

If both ArcMap and ArcGIS Pro are installed on the same computer, set the PATH variable to read the 64-bit client before the 32-bit client. For example, if you installed the 32-bit Oracle Instant Client to c:\Program Files (x86)\Oracle and installed the 64-bit Oracle Instant Client to c:\Program Files\Oracle, add the following to the beginning of your PATH variable value: C:\Program Files\Oracle;C:\Program Files (x86)\Oracle;.

If ArcGIS Pro was open on the machine before you set the PATH variable, restart it to pick up the new setting.

Connect to the database

Add a database connection using the Database Connection dialog box or the Create Database Connection tool. The following steps describe using the Database Connection dialog box.

Right-click Databases in the Catalog pane and click New Database Connection.
Choose Oracle from the Database Platform drop-down list.
Either type the Oracle TNS name in the Instance text box, or provide one of the following Oracle Easy Connect strings:
- The name of the Oracle server/Oracle service name or ID
  For example, if Oracle is installed on myserver and myosvc is the Oracle service name, type the following:
  myserver/myosvc
- The name of the Oracle server:XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX login is prefixed with an os_authent_prefix string (by default, OPS$) and stored in the USERNAME table. The maximum number of characters allowed for the user name when connecting to the geodatabase is 30. In these specific cases, ArcGIS will place quotation marks around your user name to pass it to the database. Those quotation marks count toward the 30-character total.

If you choose Database authentication, you must provide a valid database user name and password in the User name and Password text boxes, respectively. User names can be a maximum of 30 characters.

Uncheck Save user name and password if you prefer not to save your login information as part of the connection; doing this can help maintain the security of the database. However, if you do this, you will be prompted to provide a user name and password every time you connect.

Note:

Save user name and password must be checked for connection files that use database authentication and provide ArcGIS web services with access to the database, or if you want to search ArcGIS Pro to locate data accessed through this connection file.

Click OK to connect.

Connect from ArcMap

To connect to a database or geodatabase in Oracle from ArcMap, install a 32-bit Oracle client on the ArcMap computer, set the PATH environment variable to the location of the Oracle client, and create a connection file in the Catalog tree.

Install the Oracle client

Note:

If you are connecting from a 32-bit ArcGIS client, you must install a 32-bit Oracle client. This is true even if you install the ArcGIS client application on a computer with a 64-bit operating system and the database and server operating systems are 64 bit.

You can obtain the Oracle Instant, Runtime, or Administrator Client from Oracle, and install it on the client computer, following the directions in your Oracle documentation.

Set the PATH variable

Set the PATH environment variable on the ArcMap machine to the location of the Oracle Client installation. See Microsoft Windows documentation if you need instructions for setting the PATH environment variable.

Note:

If both ArcMap and ArcGIS Server are installed on the same Windows computer, set the PATH variable to read the 64-bit client before the 32-bit client. For example, if you installed the 32-bit Oracle Instant Client to c:\Program Files (x86)\Oracle and installed a 64-bit Oracle Instant Client to c:\Program Files\Oracle, add the following to the beginning of your PATH variable value on Windows: C:\Program Files\Oracle;C:\Program Files (x86)\Oracle;.

If ArcMap was open on the machine before you set the PATH variable, restart ArcMap to pick up the new setting.

Connect to the database

You can connect to a database or geodatabase in Oracle by adding a database connection under the Database Connections node in the Catalog tree in ArcMap or ArcCatalog.

Expand Database Connections in the Catalog tree in ArcMap or ArcCatalog and double-click Add Database Connection.
Choose Oracle from the Database Platform drop-down list.
Either type the Oracle TNS name in the Instance text box or provide one of the following Oracle Easy Connect strings:
- The name of the Oracle server/Oracle service name or ID
  For example, if Oracle is installed on myserver and myosvc is the Oracle service name, type the following:
  myserver/myosvc
- The name of the Oracle server:XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX login is prefixed with an os_authent_prefix string (by default, OPS$) and stored in the USERNAME table. The maximum number of characters allowed for the user name when connecting to the geodatabase is 30. In these specific cases, ArcGIS will place quotation marks around your user name to pass it to the database. Those quotation marks count toward the 30-character total.

If you choose Database authentication, you must provide a valid database user name and password in the User name and Password text boxes, respectively. User names can be a maximum of 30 characters.

Note:

Save user name and password must be checked for connection files that provide ArcGIS services with access to the database using database authentication, or if you want to search ArcGIS Desktop to locate data accessed through this connection file.

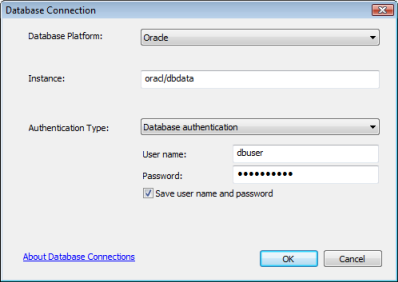

In the following example, a connection is made to the oracl/dbdata Oracle instance using database authentication.

Example Oracle connection using an Oracle Easy Connect string

Click OK to connect.

Connect from ArcGIS Server

If Oracle and ArcGIS Server are running on separate servers, install a 64-bit Oracle client on all machines in the ArcGIS Server site. On Windows machines, add the Oracle client directory to the PATH variable.

If ArcGIS Server is installed on Linux servers, edit the init_user_param.sh script installed with ArcGIS Server to include information about the Oracle client and instance, and restart ArcGIS Server.

If you want the services you publish to ArcGIS Server to use the data in your database or geodatabase in Oracle, register the database with your ArcGIS Server sites.

Install the Oracle client

If ArcGIS Server and Oracle are installed on different servers, you must install the Oracle client application on each machine in the ArcGIS Server site. Be sure you install a release of the Oracle client application that is compatible with the release of the database to which you want to connect.

You can obtain the Oracle Instant, Runtime, or Administrator Client from Oracle, and install it on the ArcGIS Server machines. Follow the directions in your Oracle documentation to install the Oracle client.

Set the PATH environment variable (Windows only)

Set the PATH environment variable on each ArcGIS Server Windows server to the location of the Oracle Client installation. See Microsoft Windows documentation if you need instructions for setting the PATH environment variable.

Note:

If both ArcGIS Server and ArcGIS Desktop are installed on the same Windows computer, set the PATH variable to read the 64-bit client before the 32-bit client. For example, if you installed a 32-bit Oracle Instant Client to c:\Program Files (x86)\Oracle and installed the 64-bit Oracle Instant Client to c:\Program Files\Oracle, add the following to the beginning of your PATH variable value on Windows: C:\Program Files\Oracle;C:\Program Files (x86)\Oracle;.

If ArcGIS Server was running before you configured the Oracle client and set the PATH variable, you must restart ArcGIS Server. You can restart ArcGIS Server from the Windows Services interface.

Alter the init_user_param.sh script (Linux only)

Once you have installed the database client files, alter the init_user_param.sh script installed with ArcGIS Server to reference the client files. You can access this script by browsing to the <ArcGIS Server installation directory>/arcgis/server/usr directory.

Note:

If your user profile references the Oracle client and the client information differs between the user profile and init_user_param.sh, ArcGIS Server may experience problems when attempting to connect to the database. To alleviate connection issues, remove the reference information from your user profile and reference your database client libraries again using the following steps:

Ensure that the ArcGIS Server installation owner on each machine has at least read and execute permissions on the database client libraries.
Open the init_user_param.sh script in a text editor.

Remove the comment marks (#) from the lines beginning with export.

If you installed the Oracle Administrator, Developer, or Runtime client, remove comment marks from all the Oracle lines beginning with export.

#
# To connect to Oracle
#
export ORACLE_BASE=<Oracle_Installdir>/app
export ORACLE_HOME=$ORACLE_BASE/<Oracle_Release>/product/<Oracle_Version>/client_1
export ORACLE_SID=<set when applicable>
export TNS_ADMIN=<set when applicable. e.g.$ORACLE_HOME/network/admin>
export PATH=$ORACLE_HOME/bin:$PATH
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$LD_LIBRARY_PATH

If you are using the Oracle database Instant client libraries, you only need to uncomment and set the $LD_LIBRARY_PATH, for example

#
# To connect with Oracle Instant Client
#
export LD_LIBRARY_PATH=<Location_to_instantclient>:$LD_LIBRARY_PATH

Set values for the export variables.
- For Oracle Administrator, Developer, or Runtime clients, uncomment and set the following variables using information specific to your implementation:
  - ```
  ORACLE_BASE=<Oracle_Installdir>
```
  The <Oracle_Installdir> is the path to and name of the top-level directory where the Oracle client is installed.
- ```
ORACLE_HOME=$ORACLE_BASE/<Oracle_Release>/product/<Oracle_Version>/client_1
```
    This is the path to the Oracle client library files. Set ORACLE_HOME to the directory where these reside. By default, the directory name is client_1, but your installation my have a different directory name.
  - If you will be using an Oracle system ID (SID) to connect, set ORACLE_SID= to the Oracle system ID of your database. If you will be using an Easy Connect string to connect, comment out this line.
  - Set TNS_ADMIN= to the location of your Oracle client TNS administration files. If you will be using an Easy Connect string to connect, you do not need to set this value and must comment out this line.
- For Oracle Instant clients, uncomment and set only the LD_LIBRARY_PATH variable, replacing <Location_to_instantclient> with the path to and directory name where the Oracle Instant client files are located.
- If ArcGIS Server and Oracle are installed on the same server, uncomment and set the following variables:
  - ORACLE_BASE=<Oracle_Installdir>
    The <Oracle_Installdir> is the path to and name of the top-level directory where Oracle is installed.
  - ORACLE_HOME=$ORACLE_BASE/<Oracle_Release>/product/<Oracle_Version>/client_1
    This is the path to the Oracle library files. Set ORACLE_HOME to the directory where these reside. By default, the directory name is db_<n>, but your installation my have a different directory name.
  - If you will be using an Oracle system ID (SID) to connect, set ORACLE_SID= to the Oracle system ID of your database. If you will be using an Easy Connect string to connect, comment out this line.
  - Set TNS_ADMIN= to the location of your Oracle client TNS administration files. If you will be using an Easy Connect string to connect, you do not need to set this value and must comment out this line.
Save and close the script.
After you have configured the init_user_param.sh on each machine in your ArcGIS Server site, run the startserver.sh script on each machine to restart ArcGIS Server.
./startserver.sh

Register the database

If you want your web services to use the data in your Oracle database or a geodatabase in Oracle, register it with your ArcGIS Server sites. See Manage registered data stores in the ArcGIS Pro help, Register your data with ArcGIS Server using Server Manager, or Add items in the ArcGIS Enterprise portal user help for instructions.
